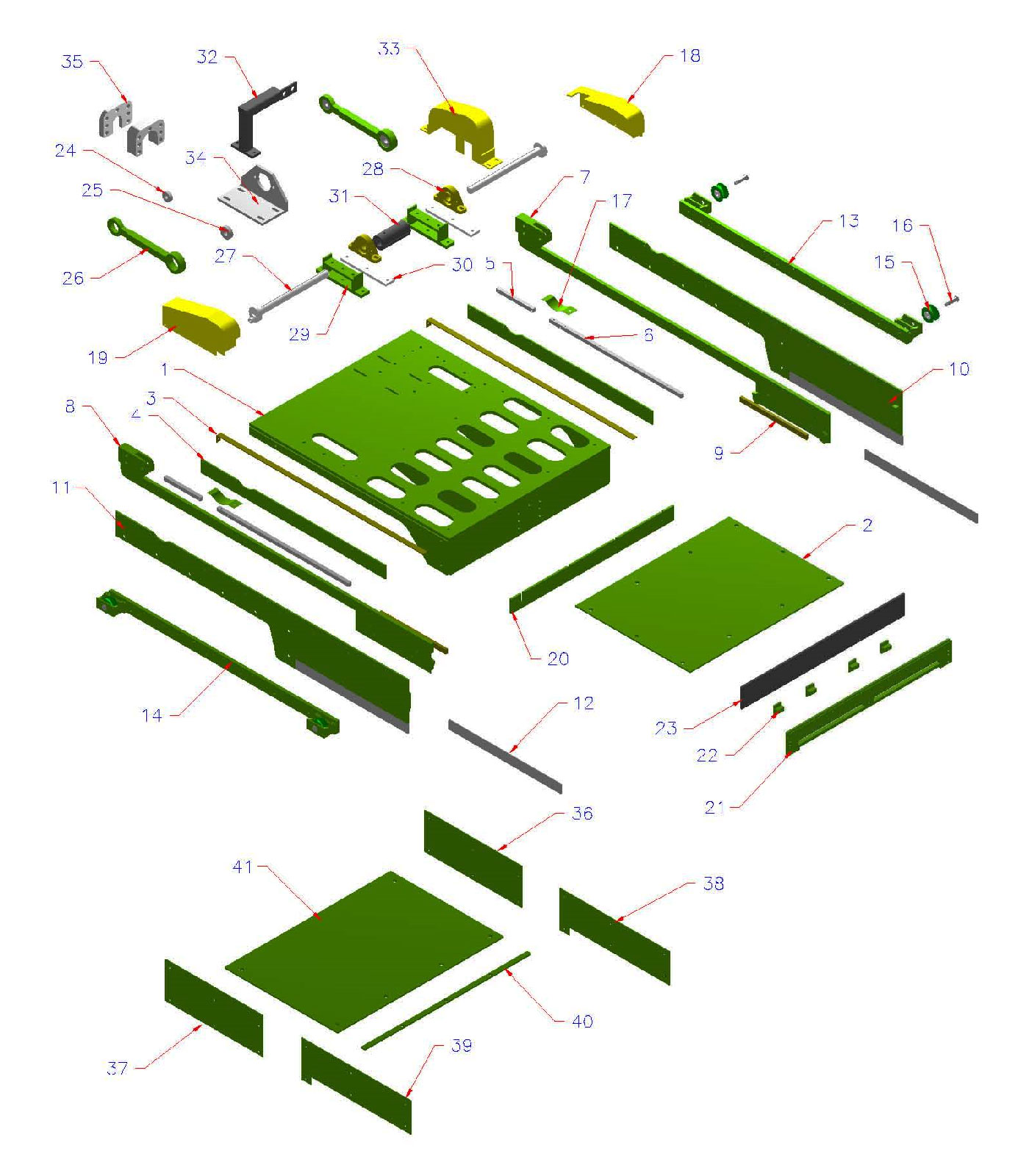

Key	QTY	Part Number	Description	Rebuild Kit Level
1		DO1600.01	Main Frame Assembly
2		D484.2.130	Top Wear Plate	1
3		DC1189.18	L-Strip	1
4		D484.300.3	Slide Assembly Spacer	1
5		DC1697.9	Small Grease Bar	1
6		D484.300.7	Large Grease Bar	1
7		D1600.24	Agitator Slide Arm RH*	1
8		D1600.25	Agitator Slide Arm LH*	1
9		D483.300.21	Agitator Hold Down Bar	1
10		D1600.26	Side Plate Assembly (includes wear shoe) RH	2
11		D1600.27	Side Plate Assembly (includes wear shoe) LH	2
12		D1612	Side Plate Wear Shoe	1
14		D1656.13	Wheel Support Bar LH	2
15		D1263.20A	Wheel Assembly	1
16		D1263.26	Wheel Pin	1
17		DC1966.21	Cover Clip
18		D1966.28	Eccentric Cover RH
19		D1966.22	Eccentric Cover LH
20		D484.2.132	Wiper Blade	1
21		D484.2.133	Front Wiper Bar Assembly	2
22		DC1641.38	T-Nut	2
23		D484.2.134	Rubber Wiper	2
24		D410724	Small Bearing	2
25		D410910	Large Bearing	2
26		DC1697.40	Connecting Rod
27		DC1697.13	Crankshaft
28		D410106	Crankshaft Bearing	2
29		DC1697.15	Bearing Mount
30		D484.2.381	Bearing Mount Spacer
31		DC1697.14	Coupler
32		D483.17.330	Hydraulic Support Arm
33		DC1697.21	Chain Guard
34		D483.13.136	Hydraulic Motor Mount
35		D484.300.85.12	Ram Shaft Housing 2 pc. Unit
		DHO1600	Hardware Kit (Lube Fittings, Nuts, Bolts, Washers)	1
36		D160031	Rear Wear Plate RH
37		D160032	Rear Wear Plate LH
38		D160033	Front Wear Plate RH
39		D160034	Front Wear Plate LH
40		D160035	Bed Plate Wear Strip
41		D160036	Bed Plate
