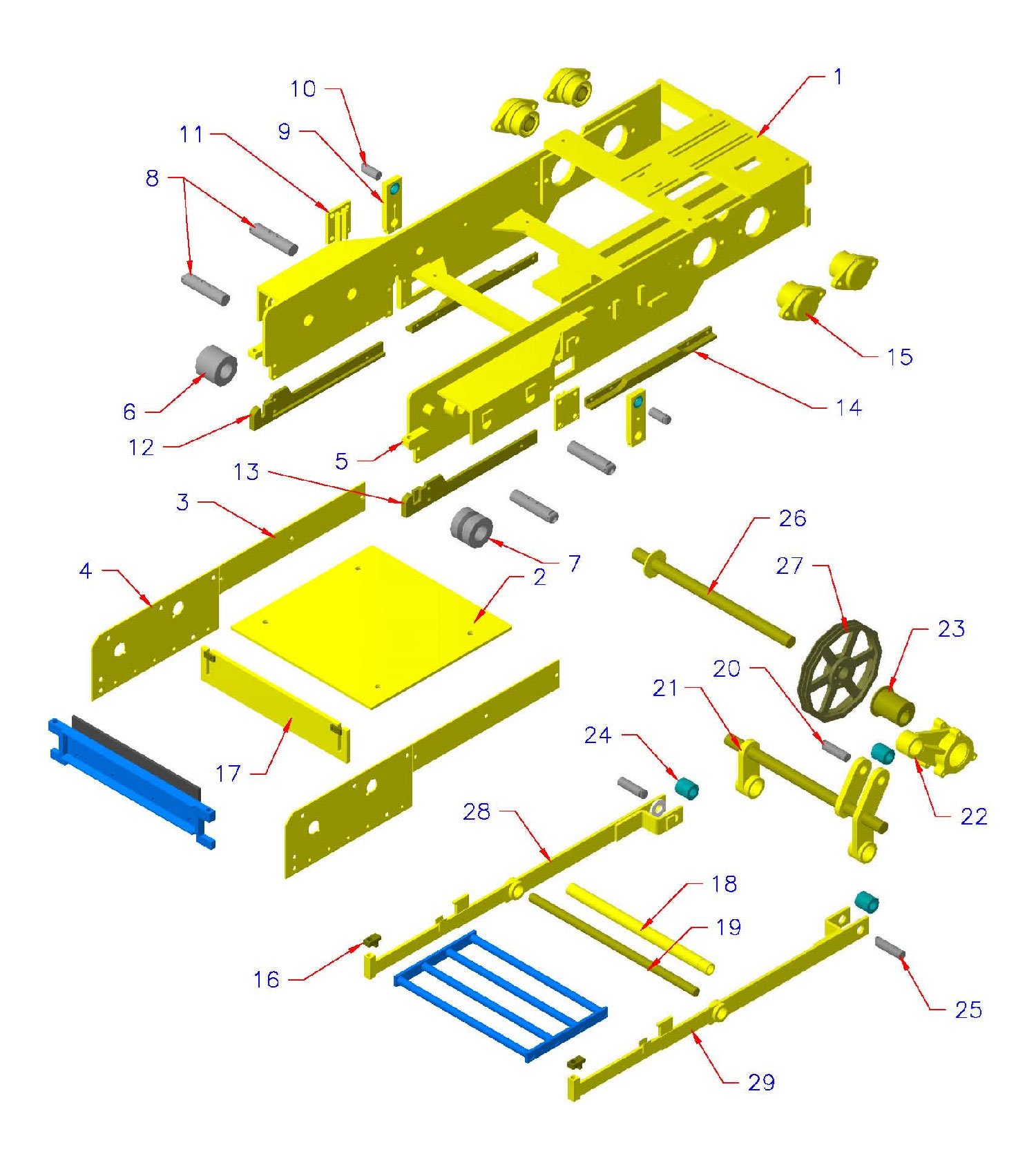

Key	QTY	Part Number	Description
1		DP0002	Feedbox Frame
2		D017222	Feed Box Back Top Plate
3		D053101	Rear Wear Liner
4		D371159	Front Wear Liner
5		D029054	Feed Box Block for Cut-off Bar
6		D288001	Plain Roller Assembly
7		D288000	V-Roller Assembly
8		D395684	Notched Pin W/Grease Fitting
9		D055567	Agitator Front Support
10		D019349	Notched Pin (3 1/2")
11		D51286	Back Bar Guide
12		D222568	Flanged Wear Shoe (LH)
13		D222569	Flanged Wear Shoe (RH)
14		D287318	Rear Wear Shoe
15		D202579	Steel Sleeved Floating Type Bearing
16		D218441	Agitator Bar Clamp
17		D31217	Back Bar
18		D049871	Agitator Grid Bar Connecting Bushing
19		D210012	Agitator Grid Bar Connecting Bushing Shaft
20		D019348	Notched Pin (5 1/2")
21		D242460	Agitator Back Shaft
22		D31222	Eccentric Assembly
23 & 24		D344143	Nylon Bushing (Back Shaft / Eccentric)
25		D017510	Notched Pin (5")
26		D31226	Agitator Back Shaft (Pulley/Eccentric)
27		D31227	Drive Pulley
28		D218482	LH Agitator Grid Bar W/Clamp
29		D218481	RH Agitator Grid Bar W/Clamp
		D412857	RH Complete link Arm Assembly
		DTS412858	Trabon Lubrication System ( Installed )
		HJ648032	Eccentric Bearings
		B-55	Drive Belts
		D063074	Hardened Guide Bar
		D16434	Eccentric Hub
		DHDY	Hardware Kit
		D326493-01	Hardened Pin Retainers
